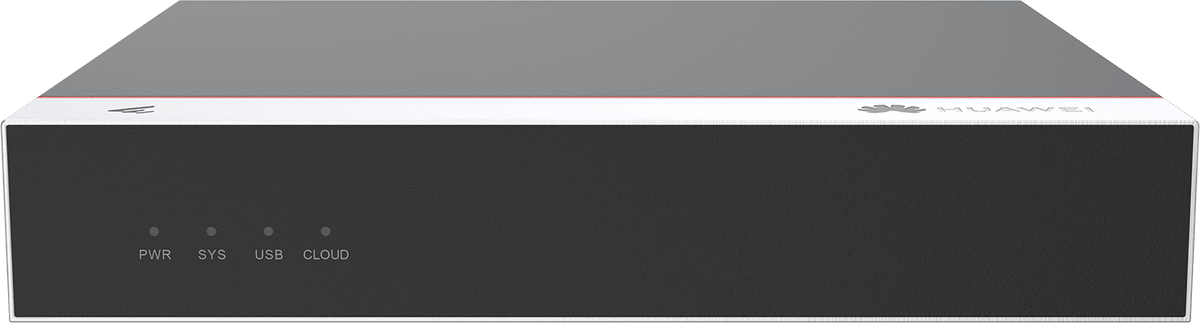

AC650-256AP

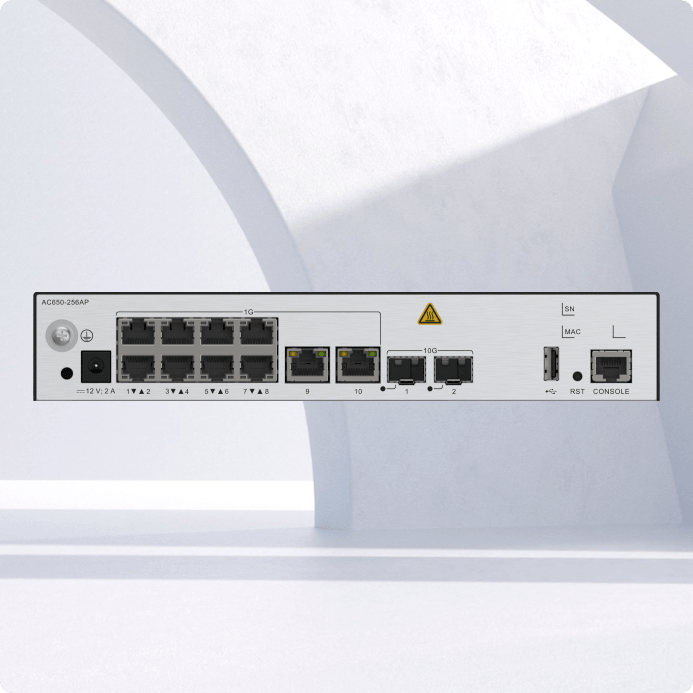

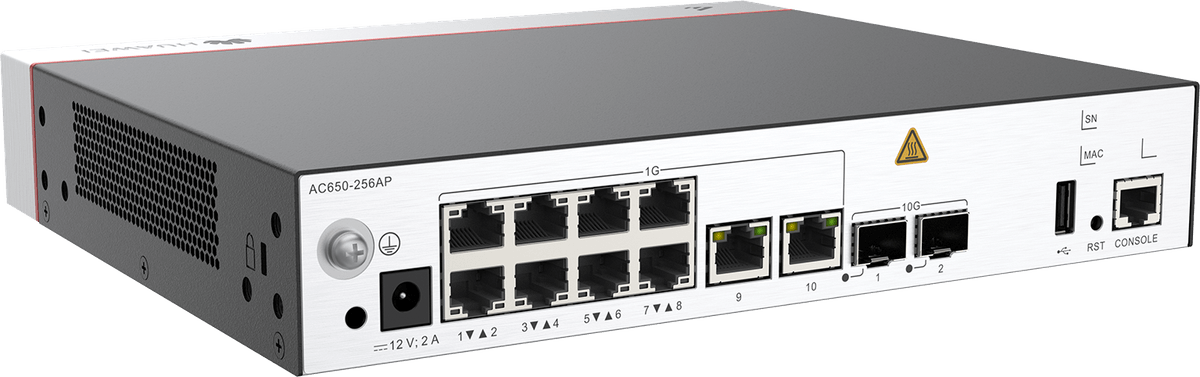

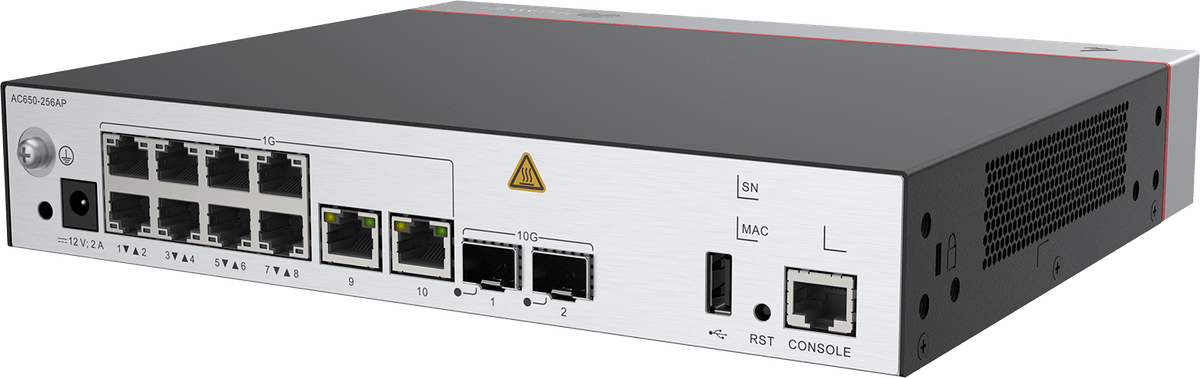

wireless access controller | Manage APs: 256 | 10 x 10/100/1000BASE-T ports, | 2 x 10 GE SFP+ ports
The AC650-256AP is a small-capacity box wireless access controller (WAC) for small office home office (SOHO) enterprises. It can manage up to 256 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users.
Large-capacity
Manages 256 APs for free
Super speed
forwarding performance:10Gbps
Interfaces:2*10GE SFP，10*GE
Interfaces:2*10GE SFP，10*GE
Also, the AC650-256AP features high scalability and offers users considerable flexibility in configuring
the number of managed APs. With these strengths, this WAC can be used to construct small and medium campus networks, enterprise office networks, wireless metropolitan area networks (MANs), and hotspot coverage networks.
the number of managed APs. With these strengths, this WAC can be used to construct small and medium campus networks, enterprise office networks, wireless metropolitan area networks (MANs), and hotspot coverage networks.
SmartRadio for AP air interface optimization
Load balancing during smart roaming: The load balancing algorithm enables load balancing detection between APs on the network after STA roaming to adjust the STA load on each AP, improving network stability.
Intelligent dynamic frequency assignment (DFA) technology: The DFA algorithm is used to automatically detect adjacent- channel and co-channel interference, and identify any redundant 2.4 GHz radios. Through automatic inter-AP negotiation, a redundant radio is automatically switched to another mode (dual-5G AP models support 2.4G-to-5G switchover) or is disabled to reduce 2.4 GHz co-channel interference and increase the system capacity.
Intelligent conflict optimization technology: Dynamic enhanced distributed channel access (EDCA) and airtime scheduling algorithms are used to schedule the channel occupation time and service priority of each user. This ensures that each user is assigned a relatively equal amount of time for using channel resources and user services are scheduled in an orderly manner, improving service processing efficiency and user experience.
Built-in visualized network management platform
The AC650-256AP has a built-in web system that is easy to configure and provides comprehensive monitoring and
intelligent diagnosis.

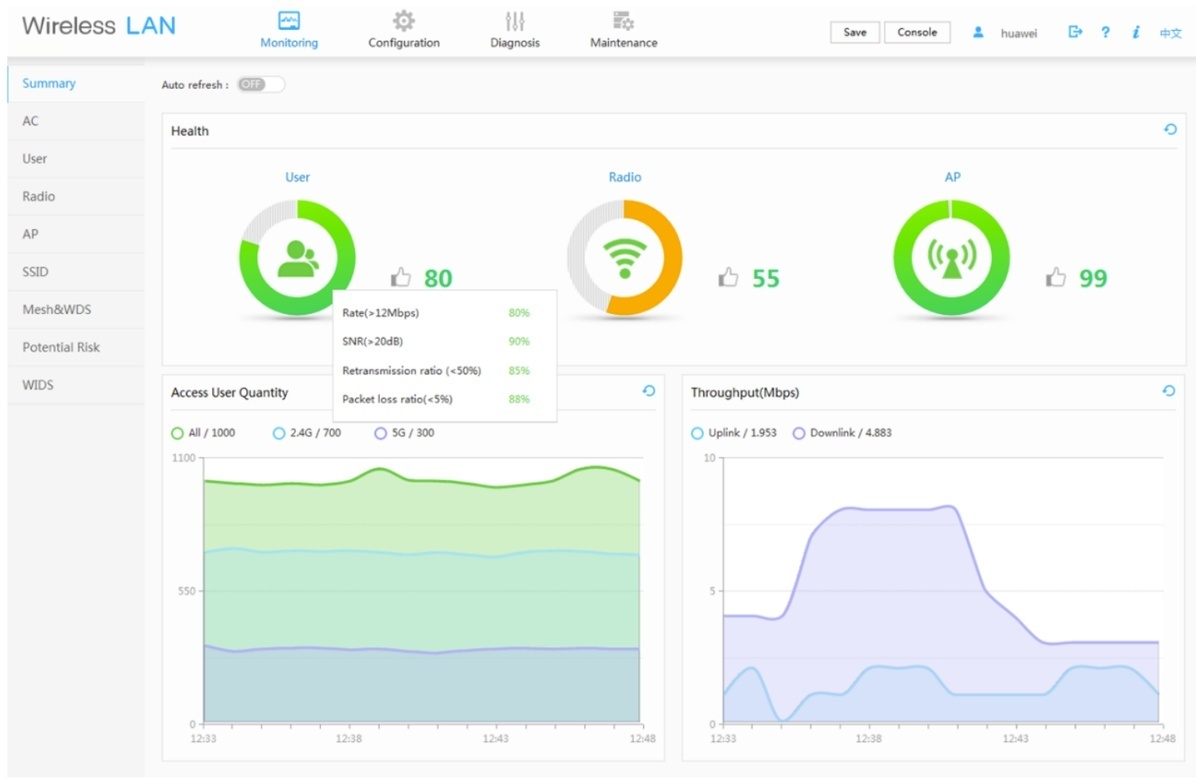

Health-centric one-page monitoring, visualized KPIs
One page integrates the summary and real-time statistics. KPIs are displayed on graphs, including user, radio and AP performance, enabling users to extract useful information from the massive amount of data, while also being instantly aware of the device and network status.

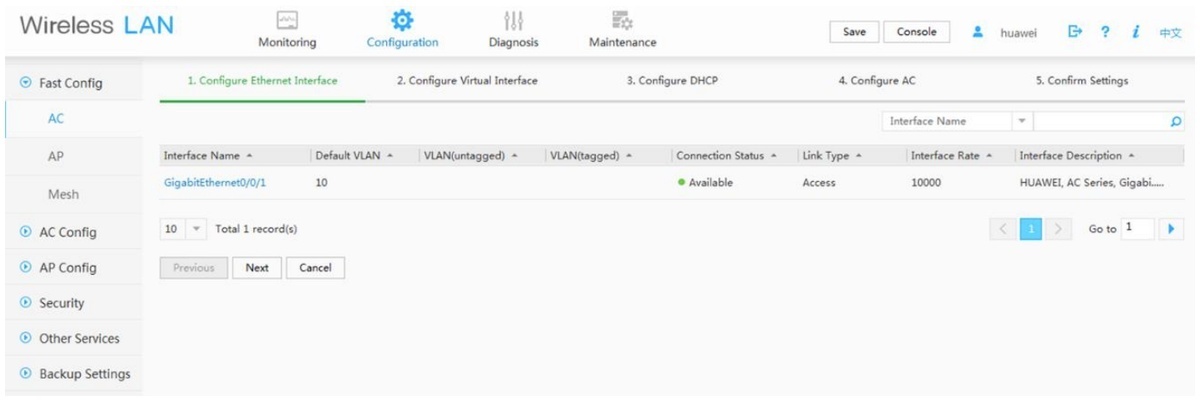

Profile-based configuration by AP group simplifies configuration and improves efficiency
The web system supports AP group-centric configuration and automatically selects common parameters for users, simplifying configuration.

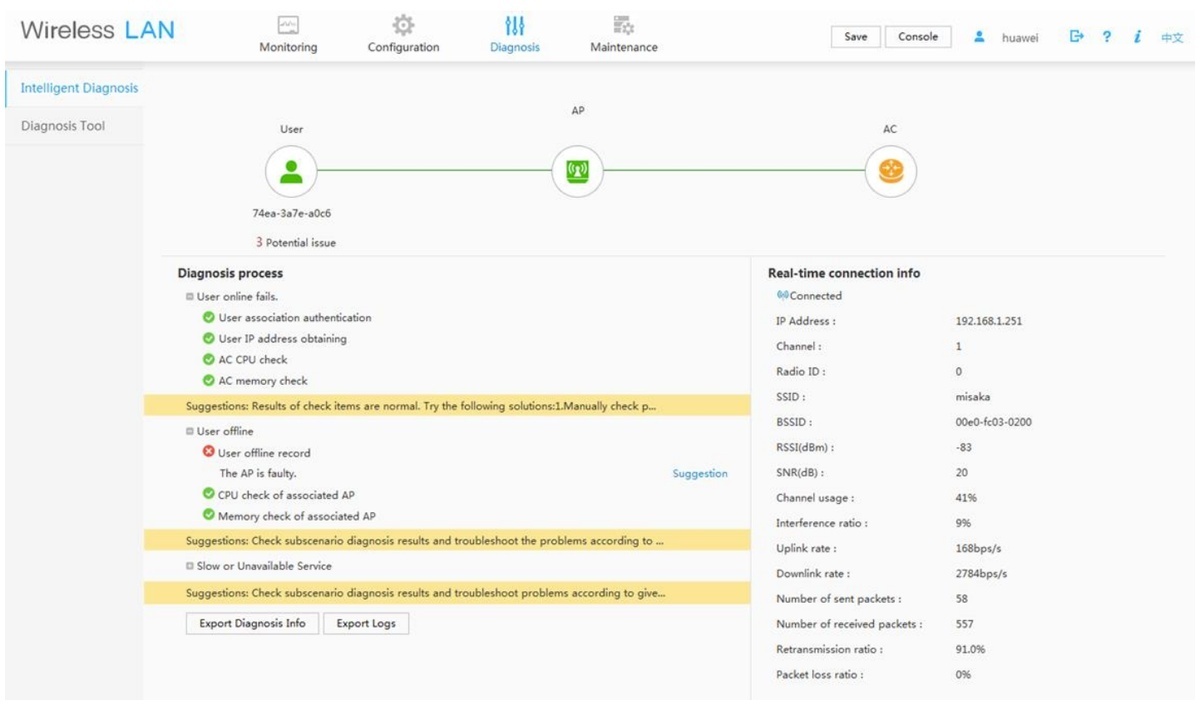

One-click diagnosis solves 80% of common network problems
The web system supports real-time and periodic one-click intelligent diagnosis from the dimensions of users, APs, and WACs, and provides feasible suggestions for troubleshooting.
